Holder dimensions

Width Range: 2.375 – 3.25
Depth Range: .875 max

Features

• Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM^{® X-Grip® technology and 15W maximum output}
• Kit for vehicles includes wireless cradle, B size diamond ball base, medium double socket arm, and RAM^{® Twist-Lock™ suction cup}
• Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
• RAM^{® Mounts backed by lifetime warranty*, RAM® electronics backed by 1-year warranty with proof of purchase required}

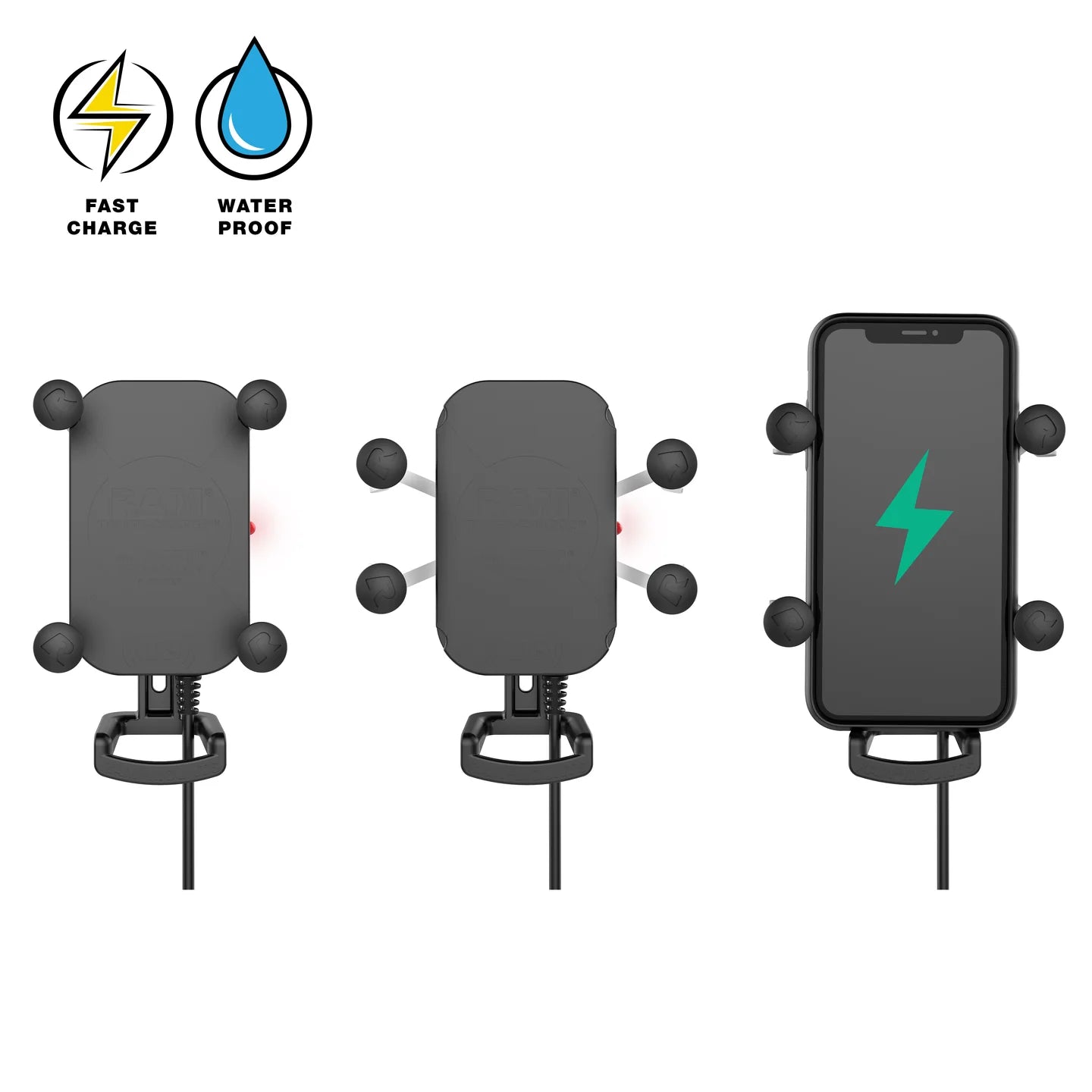

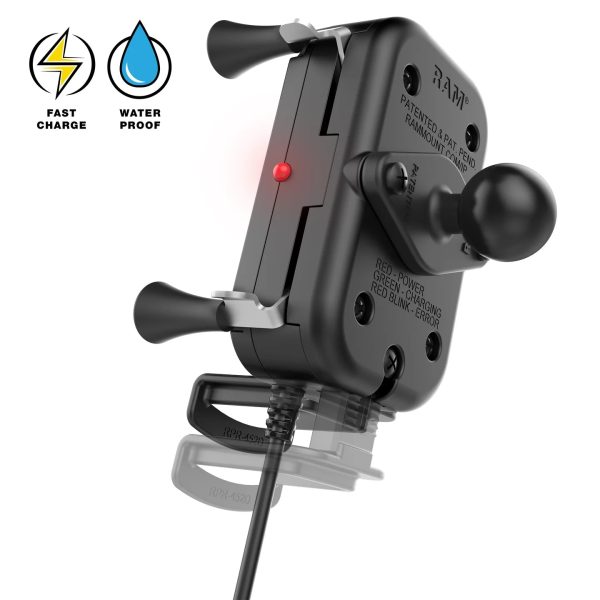

• The RAM® Tough-Charge™ with X-Grip® Technology is the world s first patented, universal waterproof wireless charging cradle for phones. Designed with spring-loaded RAM® X-Grip® Technology, this cradle features an X design that expands and contracts to secure nearly any phone while taking advantage of Qi compatible wireless phone charging. All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones. To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms.



  This Qi wireless charging cradle ensures your compatible phone charges no matter what position it’s placed at. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. In addition, a support leg can be adjusted to the ideal position or removed altogether.

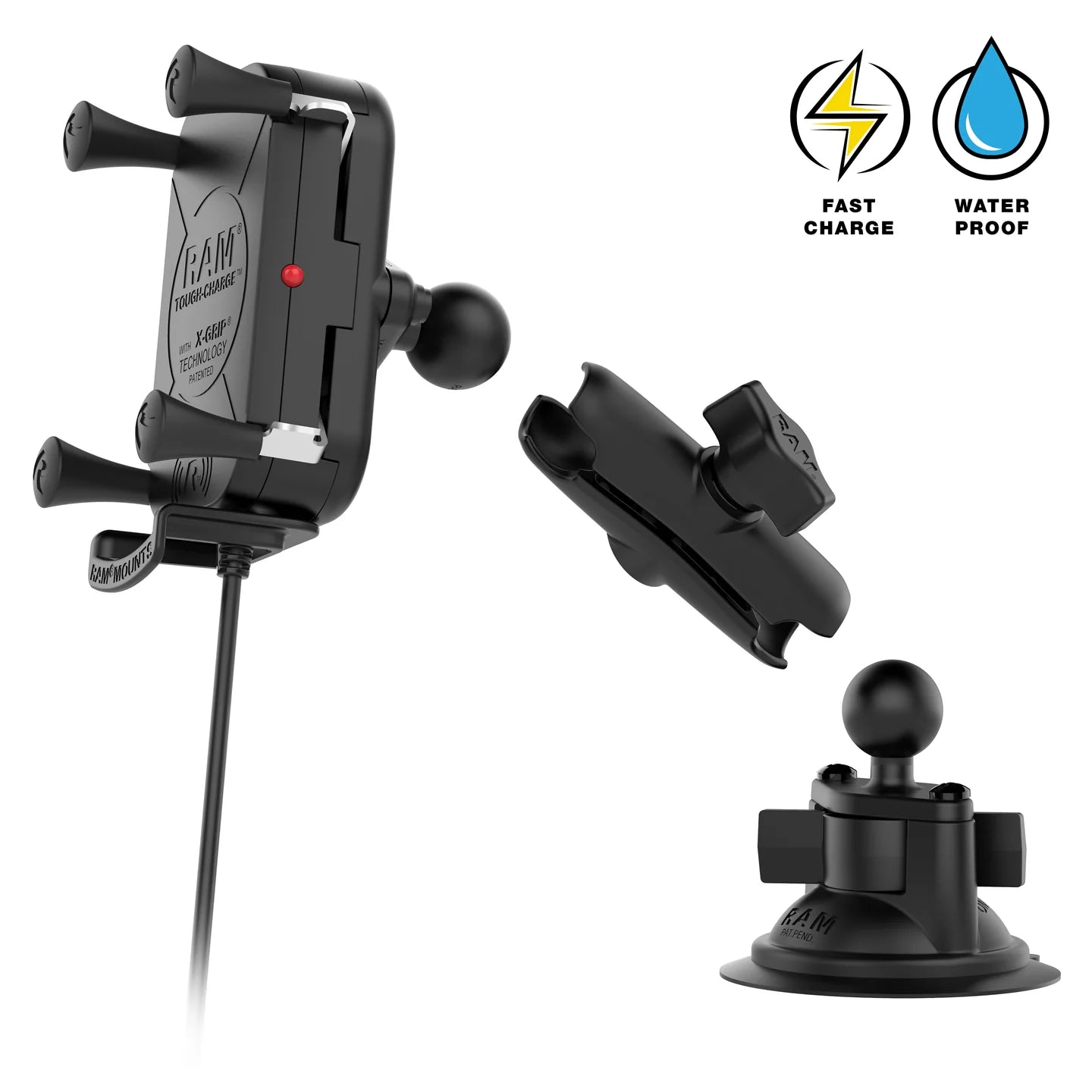

  This RAM® Tough-Charge™ with X-Grip® Technology wireless charging suction cup kit includes a B size diamond base featuring a 1” rubber ball, medium length double socket arm, and RAM® Twist-Lock™ suction cup.

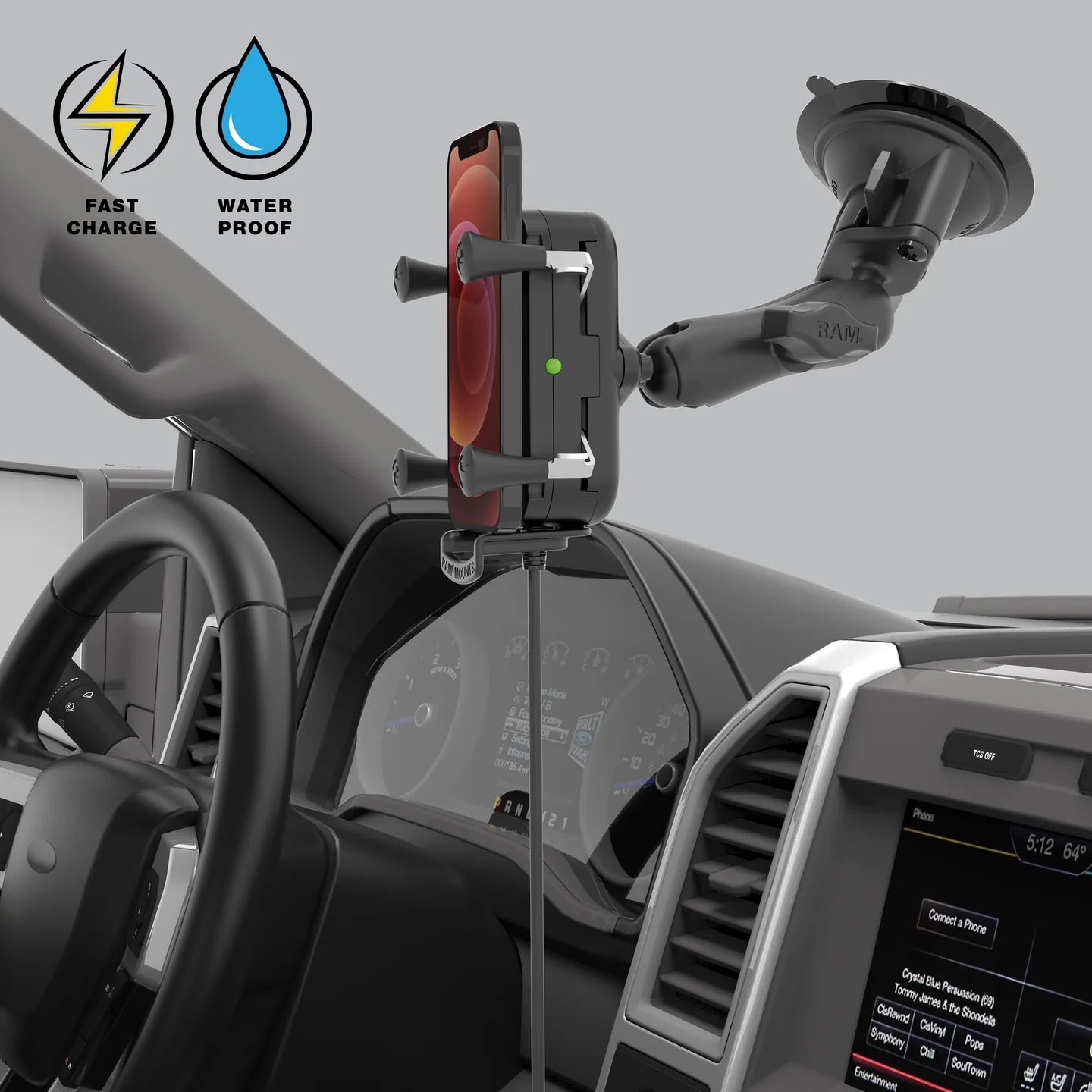

  The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.



  hardware included

  (1) Safety Tether
  (1) Glue Tube for Rubber Caps
  (1) Cradle Leg
  (1) Cradle Leg Cover
  (1) Silicon sleeve for USB waterproof connection
  (1) 1.2 Meter USB Extension Cable
  (4) Small zip ties
  (2) Large zip ties

  holder dimensions

  Width Range: 2.375 – 3.25
  Depth Range: .875 max

  suction size

  3.3 Diameter

  socket to socket length

  3

  ball size

  B Size (1 )

  weight capacity

  Standard Use: 2 lbs
  Heavy-Duty Use: 1 lb

  materials

  Marine-grade aluminum
  High strength composite
  Stainless steel

  packaging type

  Retail Box

  power specifications

  Input Power:5V-2A; 9V-1.67A
  Output: 15W
  Conversion Efficiency: 85% Max
  Maximum Case Thickness: 6mm
  Working Frequency: 110-205KHZ
  Product Standard: WPC v.1.2.4
  Qi Compatible
  Compatible with QC2.0 QC3.0 power supplies

  input connector

  USB Type-A Male

  input cable length

  20 with optional 1.2M extension cable

  operating temperature

  0°C to +37.7°C

  regulatory

  Over current protection, short circuit protection and over temperature protection

  certifications

  FCC, IC, KC, CE, E-Mark, WEEE, RCM, and RoHS Compliant

  Warranty

  1 year warranty

  Weight

  1.58 lb

  Additional Information

  IMPORTANT: For open cockpit applications (i.e. motorcycles, ATVs, boats, etc.) apply silicone grease to the USB Type-A male & female connector to protect the connections and prevent corrosion. Failure to do so will void warranty.

  Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras.

  Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5.
